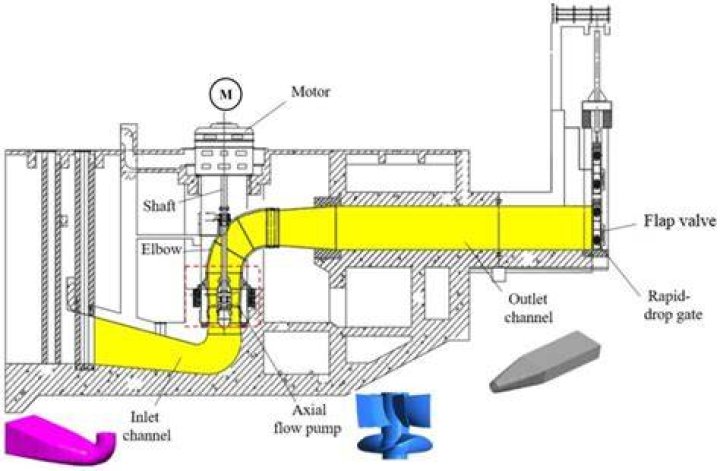

What is the purpose of a flap valve?

Introduction to Flap Valves Their purpose is to allow downstream water to exit the pipe via a one-way flap door, whilst preventing rising water levels outside of the pipe from entering the pipe and flowing back up the system and flooding the protected area.

What is airlock valve?

An Airlock is a valve that separates a pressure differential sealing off airflow from a hopper, bin, or conveying line. In the pneumatic conveying world airlocks are usually found at the beginning of a pressure system or at the end of a vacuum system.

How does a double flap valve work?

Plattco Double Flap Valves operate using two distinct chambers. The bottom valve then re-closes to prevent leakage of fugitive and tramp air. Then, it continuously cycles to maintain a steady flow of material and maintaining a positive seal on the system.

Is a flap valve a check valve?

These flap check valves have been designed to provide excellent flow characteristics. Because of their straight-through flow design they have a lower pressure drop than other check valve designs, and their compact size takes up less space in the pipeline than other types of check valves.

How do flap gates work?

A flap gate is a flow control device that, in principle, functions as a check valve, allowing water to flow through it in only one direction. A positive head differential against the downstream face (water elevation higher on the downstream side) will force the flap against the face of the culvert to seal it.

How do I choose a rotary valve?

Here are three things to consider when selecting a rotary valve for your pneumatic conveying system to improve your material flow.

1. Blow-by air, or leakage. An airlock keeps pressure consistent as materials move through your system.
2. Product aeration.
3. Shape.

What is rotary airlock valve?

Rotary airlock valves are also called rotary feeders, rotary valves, or just rotary airlocks. Used in both pressure style and vacuum style pneumatic conveying systems, these valves serve as a “lock” to prevent air loss while simultaneously performing vital material handling functions.

What is double pendulum valve?

Pendulum flaps or double dump valves are used for the continuous dosing, blocking, and discharging of bulk materials. Double dump valves are actuated pneumatically, electrically or mechanically. The welded design makes the valves lighter than cast iron and less expensive.

What are Sluice gates used for?

The gate that controls a sluice is a valve known as a “sluice gate.” These valves are designed to seal in one direction and commonly are used to control water levels and flow rates in rivers and canals. They also are used in wastewater treatment plants.

What is flap gate?

Definition of flap gate : a gate hinged at the top and opening one way only and placed in a channel to close automatically on reversal of flow — compare flap valve.
