What is the objective of automatic generation control?
Andrew Mclaughlin What is the objective of automatic generation control?
Abstract— Automatic generation control (AGC) regulates me- chanical power generation in response to load changes through local measurements. Its main objective is to maintain system frequency and keep energy balanced within each control area so as to maintain the scheduled net interchanges between control areas.
Is AGC and LFC same?
Automatic Generation Control (AGC) used in secondary frequency control requires manual tuning to maintain a balance between reaction speed and stability. In this paper, we propose a tuningless Load-Frequency Control (LFC) approach able to cope with the changing dynamics of electric power grids.
Which AGC control mode should each balancing authorities operate on?
Automatic Generation Control
R3. Each Balancing Authority shall operate its Automatic Generation Control (AGC) on Tie Line Frequency Bias, unless such operation is adverse to system or Interconnection reliability.
What is AGC and AVR?
Abstract: This paper deals with automatic generation control (AGC) and Automatic voltage regulator (AVR) in a two-area interconnected deregulated power system with and without direct current (DC) link. The results show that the FLC with DC link gives the better results as compared with other two controllers.
What is AGC setpoint?
AGC Set-Point means the Company or Transmission Provider-generated analog or digital signal sent by the SCADA System to the Facility, representing the maximum Renewable Energy output for the Facility. The AGC Set-Point is calculated and communicated electronically through the SCADA System as required by Section 3.3.
How does automatic gain control work?
The AGC circuit keeps the receiver’s output level from fluctuating too much by detecting the overall strength of the signal and automatically adjusting the gain of the receiver to maintain the output level within an acceptable range.
Which of the following factor is controlled in automatic generation control AGC Mcq?
In AGC, the voltage and frequency is controlled by excitation control. turbine control. turbine speed control and excitation control respectively. excitation control and turbine speed control respectively.
What is frequency bias setting?
A value, usually expressed in MW/0.1 Hz, set into a Balancing Authority ACE algorithm that allows the Balancing Authority to contribute its frequency response to the Interconnection.
What is a balancing authority?
A balancing authority ensures, in real time, that power system demand and supply are finely balanced. This balance is needed to maintain the safe and reliable operation of the power system. If demand and supply fall out of balance, local or even wide-area blackouts can result.
What is automatic gain control circuit?
Automatic Gain Control (AGC) AGC is a system that controls the increase in the amplitude of an electrical signal from the original input to the amplified output, automatically.
Should you turn on automatic gain control?
AGC is a unique circuit that listens to the incoming audio level and adjusts the recording level when sounds are too loud or too soft. Those who are recording for quality will want to turn AGC off. In our opinion, we’d always turn AGC off and make any changes to your environment for clearer sound.
How many types of automatic gain control are there?
In radio communications equipment three types of automatic gain control predominate—the simple gain control, the delayed gain control, and the amplified-delayed gain control.
What is the meaning of automatic generation control?

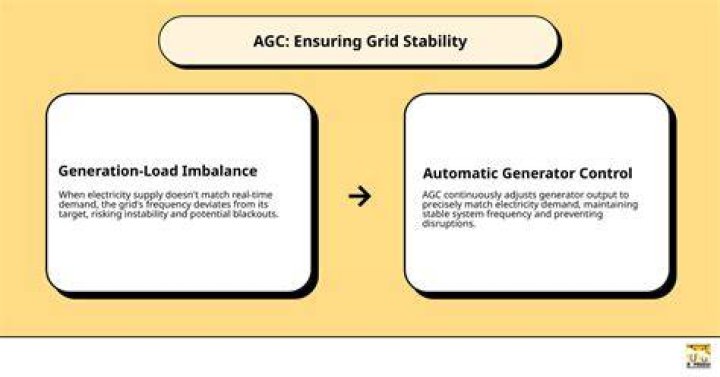

Automatic Generation Control. In an electric power system, automatic generation control (AGC) is a system for adjusting the power output of multiple generators at different power plants, in response to changes in the load. Since a power grid requires that generation and load closely balance moment by moment, frequent adjustments to the output…
What is AGC and how does it work?
AGC also calculates the parameters required for load frequency control and provides the required data on demand to maintain system frequency and power interchanges with neighboring systems at scheduled values.
Why do power grid generators need to be adjusted?
Since a power grid requires that generation and load closely balance moment by moment, frequent adjustments to the output of generators are necessary. The balance can be judged by measuring the system frequency; if it is increasing, more power is being generated than used, which causes all the machines in the system to accelerate.
What are the advantages of an automatic power system?
The remaining units would be controlled with speed droop to share the load in proportion to their ratings. With automatic systems, many units in a system can participate in regulation, reducing wear on a single unit’s controls and improving overall system efficiency, stability, and economy.
