What is a water-cooled condenser?

A water-cooled condenser is a chiller component that removes heat generated by an industrial or commercial process. Condensers can be considered a form of heat exchanger, as they both serve similar functions.

How does a steam condenser work?

A steam condenser is a mechanical device employed to condense exhaust steam of the turbine into the water. It conducts this process with the help of cooling water that circulates inside it from the cooling tower. The pressure within a steam condenser is held below the atmospheric pressure to enhance efficiency.

What are the three types of water-cooled condensers?

Three common types of water-cooled condensers are (1) double pipe, (2) shell and tube (as shown in Fig. 6.9), and (3) shell and coil. Figure 6.9. An open shell-and-tube condenser and double-pipe condenser.

What are the different types of steam condenser?

The steam condensers are classified as follows:

• Jet condensers (mixing type condensers)
• a. Parallel flow jet condenser.
• b. Counter flow jet condenser (low level)
• c. Barometric or high level jet condenser.
• d. Ejector condenser.
• Surface condensers (non mixing type condensers)
• a. Down flow surface condenser.
• b.

Is a water-cooled condenser more efficient than an air-cooled condenser?

Energy efficiency: Water-cooled chillers are typically more energy efficient than air-cooled chillers. The condensing temperature in a water-cooled chiller is dependent on the condenser-water temperature, which is dependent on the ambient wet-bulb temperature.

What is the difference between water condenser and air condenser?

Differences in the Condenser Air-cooled chillers have condensers that use ambient air to cool hot refrigerant. Water-cooled condensers are typically tube-in-tube, tube-in-shell, or plate-type heat exchangers in which water from a cooling tower or other water source cools the refrigerant.

What are the organs of steam condenser?

Requirements of Steam Condensing Plant

• Condenser: It is a closed vessel used to condense the steam.
• Condensate Extraction Pump: It is a pump which is installed in between the condenser and hot well.
• Hot Well:
• Boiler Feed Pump:
• Air Extraction Pump:
• Cooling Tower:
• Cooling Water Pump:

What are the advantages of condenser?

Advantages of a condenser in a steam power plant It increases the efficiency of the power plant due to increased enthalpy drop. It reduces back pressure of the steam which results in more work output. It reduces temperature of the exhaust steam which also results in more work output.

How many types of water-cooled condensers are there?

three
There are three primary types of condensers in Water-Cooled Condenser chillers, each designed to keep your processes cool and running strong: Shell-and-tube. Brazed plate. Coaxial tube-in-tube.

What is a HVAC condenser?

A condenser (or AC condenser) is the outdoor portion of an air conditioner or heat pump that either releases or collects heat, depending on the time of the year. The compressor is the heart of the system since it compresses the refrigerant and pumps it to a coil in the form of a hot gas.

In which type of condenser water and steam do not?

Surface condensers
Surface condensers (or non-mixing type condensers). In surface condensers, there is no direct contact between the exhaust steam and the cooling water.

In which types of condenser water and steam do not mix directly?

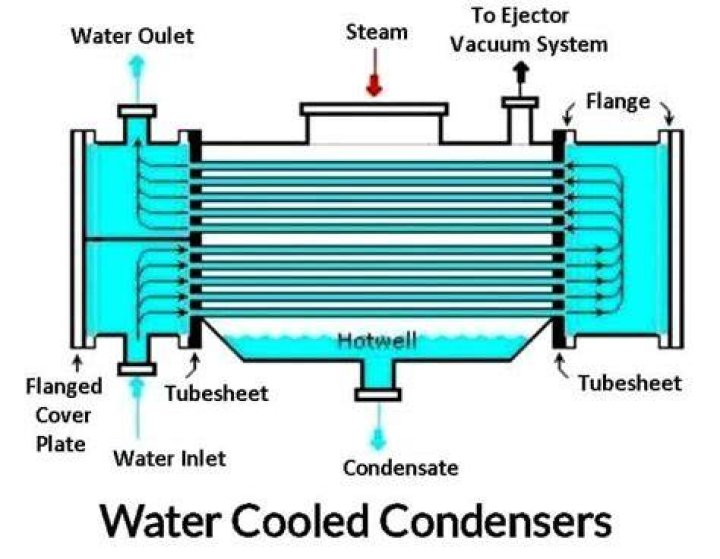

Surface condenser is a type of steam condenser in which the steam and cooling water do not mix with each other. And because of this, the whole condensate can be used as boiler feed water. It is also called as non-mixing types condenser. The figure above shows the longitudinal section of a two pass surface condenser.
