What is a normal Pleth reading?
Rachel Davis What is a normal Pleth reading?

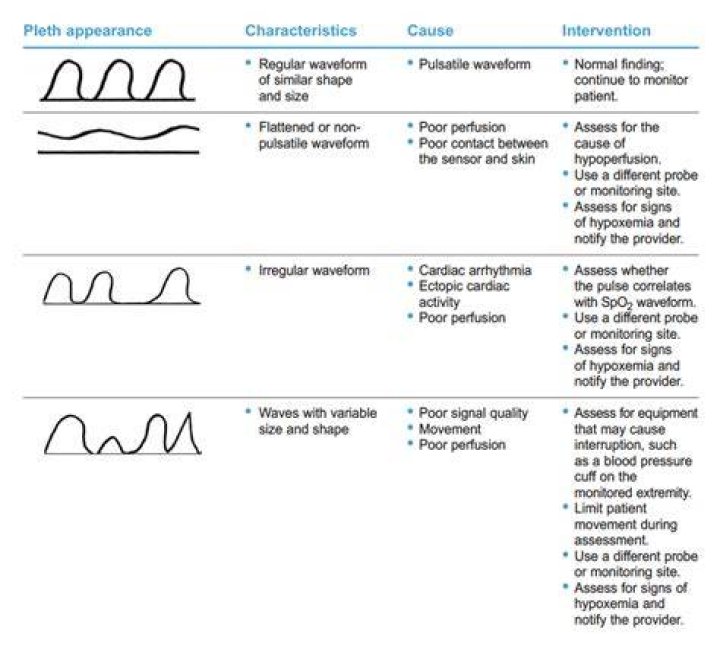

A good, normal pleth waveform has evenly spaced, equally wide waves of equal amplitude. If your pleth doesn’t look like this, check to make sure the sensor is clean and in good contact with the patient’s skin. Be aware that if the patient’s rhythm is irregular, the pleth waveform will be as well.
What does the waveform on a pulse oximeter mean?
The wave form is an overall reflection of the volume of blood that is circulating with each beat of your heart. This can easily be detected with your finger pulse oximeter and the fluctuation in blood flow is normally shown as a (squiggly) line along with the readings for saturation and heart rate.
What Does the Pleth mean?
(plĕ-thĭz′mə-grăf′, plə-) An instrument that measures variations in the size of an organ or body part on the basis of the amount of blood passing through or present in the part.
What is plethysmograph on pulse oximeter?
A photoplethysmogram (PPG) is an optically obtained plethysmogram that can be used to detect blood volume changes in the microvascular bed of tissue. A PPG is often obtained by using a pulse oximeter which illuminates the skin and measures changes in light absorption.
What is the Pleth waveform?
The pleth waveform corresponds to blood flow. A well-defined pleth suggests a strong pulse and good perfusion at the probe site. With every cardiac contraction, during systole, the pulse ox pleth goes nearly straight up then starts to drop off. This is called the anacrotic limb.
What is Pleth variability?
The Pleth Variability Index (PVI®) is the percentage variation in the plethysmograph and is calculated from the perfusion index (PI), which is described as the percentage of light absorbed as a result of arterial pulsation (AC) relative to total amount of light absorbed (DC). PI = (AC/DC) × 100%.
What is a Pleth wave?
What does Pleth stand for on a hospital monitor?
Pleth Variability Index (PVi®) PVi provides a continuous noninvasive measure of the relative variability in the photoplethysmograph (pleth) during respiratory cycles that may be used as a dynamic indicator of fluid responsiveness in select populations of mechanically ventilated adult patients.
What is Pleth Variability Index?
Pleth variability index (PVI) is a new algorithm allowing for automated and continuous monitoring of DeltaPOP. We hypothesized that PVI can predict fluid responsiveness in mechanically ventilated patients under general anaesthesia. Methods: Twenty-five patients were studied after induction of general anaesthesia.
What is a Pleth waveform?
What is Pleth on medical monitor?
A plethysmograph is an instrument for measuring changes in volume within an organ or whole body (usually resulting from fluctuations in the amount of blood or air it contains). The pulse oximeter that detects the signal is called a plethysmograph (or ‘Pleth’ for short).
