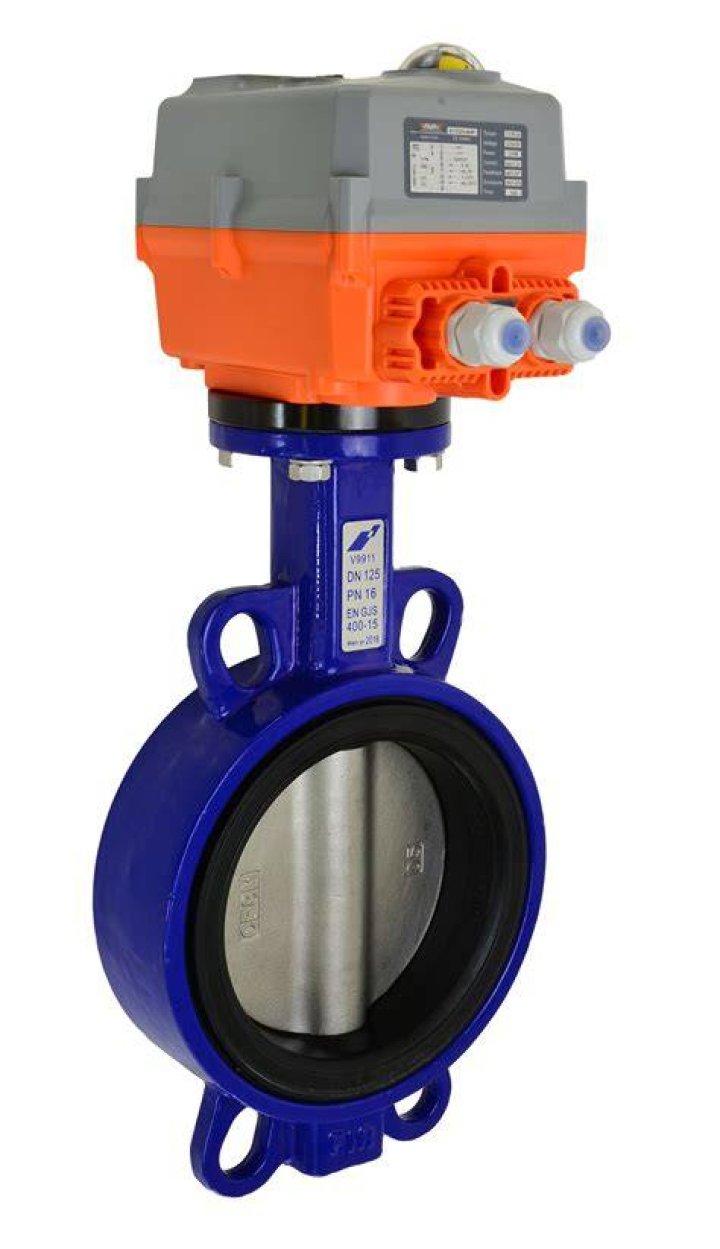

What is a butterfly valve actuator?

An actuator is a mechanical device for moving or controlling a mechanism or system. A butterfly valve is a valve used for flow regulation in which the disc takes the form of disk. Operation is similar to that of a ball valve. A plate or disc is positioned in the center of the pipe.

Is a butterfly valve a rotary valve?

A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid.

What is a rotary valve actuator?

A rotary valve actuator is a mechanical device that converts electric, hydraulic, or pneumatic energy into rotary motion. Revolving on a circular path, this type of actuator is typically defined in degrees. It can be set to finite or infinite, depending on what the customer needs.

Can you control flow with a butterfly valve?

Unlike gate valves, butterfly valves can be used for throttling or regulating flow as well as in the full open and fully closed position. The pressure loss through a butterfly valve is small in comparison with the gate valve. The L/D ratio for this type of valve is approximately one-third of that of a gate valve.

What is a butterfly valve used for?

Butterfly valves are a family of quarter-turn rotational motion valves that are used in pipelines to shut-off flow. It is often said that butterfly valves can be used to regulate the flow.

Which is better butterfly valve or ball valve?

Flow capacity: Butterfly valves can provide a larger flow capacity as they are readily available at a larger pipe diameter than a ball valve. Sealing: Ball valves provide a tight seal in process applications that require zero leakages when shutoff.

What is difference between gate valve and butterfly valve?

Gate valves: this valve is designed to start and stop the flow of water. Butterfly valves: this valve is designed to start, stop, and regulate the flow of water. It’s named for the rotating disc that opens and closes the valve. Because you can partially open the valve, you can control the flow of water.

Where is a rotary actuator used?

Rotary actuators are used in many motion-control systems as well to operate, for instance, pick-and-place handlers or clamps. These are often air-powered but can be electrically or even hydraulically powered. Miniature actuators capable of very fine movement may be sourced as well.

What is butterfly valve not suitable for?

Disadvantages of Butterfly valve Disc movement is affected by flow turbulence. The valve disc is always under pressure and can interrupt the flow even in an open position. Poor Sealing function. Not suitable for high differential pressure.

What are the disadvantages of butterfly valves?

In addition to advantages, there are slight disadvantages of butterfly valves like:

• A certain part of the disc always faces the flow, even when completely opened.
• It has a poor sealing function.
• Throttling by employing butterfly valves is restricted to low-pressure drop systems.
