What Colour wires are 3 Phase Australia?

Australian engineers use red, white and blue for their live wire colours. The specific difference that is unique to Australia is the white L2 line.

What is the 3 phase voltage in Australia?

400 V
Three-phase electric power (industrial applications only)

What Colour wire is active in Australia?

brown
Each country will have its own electrical code for the colour of the wires. Within Australia the live wire is brown, the neutral wire is blue and the earth wire is green and yellow.

What Colour wires are live and neutral in Australia?

The Australian Standard specifies that for most installations, the electrical wiring colours to use are black for a live conductor, brown or blue for a neutral conductor, green or yellow-green for an earth (ground) conductor, and red or orange for a signal wire.

What Colour is 3 phase wire?

For three-phase cables the phase colours are brown, black and grey, instead of red, yellow and blue, respectively, and the neutral colour is now blue instead of black. Again the protective conductor is identified by the colour combination green-and-yellow.

What wire do you use for 3 phase?

Some three-phase power supplies do use a fourth wire, which is a neutral wire. The two most common configurations of three-phase systems are known as wye and delta. A delta configuration has only three wires, while a wye configuration may have a fourth, neutral, wire.

Does Australia use 3 phase power?

Most homes in Australia have single phase power but if you have larger home, you might be connected to the grid by 3 phase power. Electricity is generated and distributed in 3 phases which is why you see multiple overhead cables on the poles in the street.

What does L and N mean in electrical wiring Australia?

Neutral and Load
The N & L stand for Neutral and Load. With your AC line in you should have three wires. Neutral, Load, and Ground.

What is green and yellow wire?

The green and yellow wire is also referred to as the earth wire and has a key safety function. Electricity being transferred around any property will always take the path of least resistance to the earth.

What Colour is neutral in 3 phase?

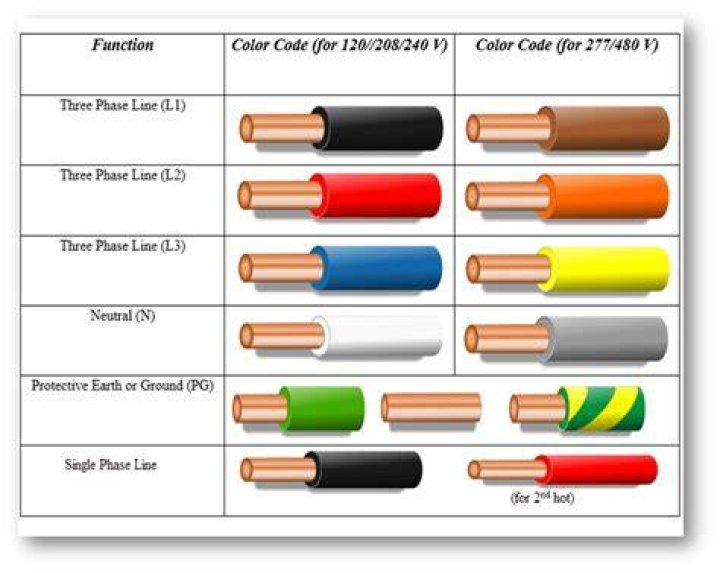

Electrical Three Phase Wiring Colours
