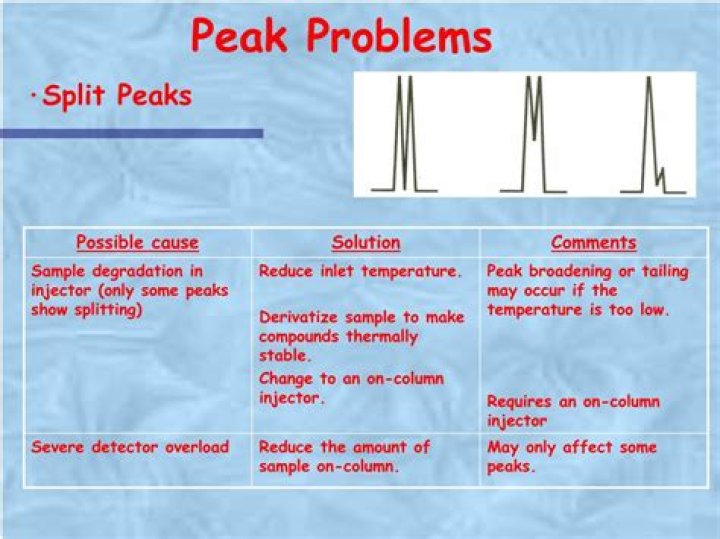

What causes split peaks in gas chromatography?
Emily Wilson What causes split peaks in gas chromatography?
Split peaks can show up in gas chromatography when our injection isn’t working right or things aren’t transferring from the inlet to the column correctly.
How do I know if my GC column is bad?
You can see the signs of : bleeding, peak broadening or skewing etc that the column can not separate well before replace with a new column. One of my experience is to cut off 1 or 2 meters at the inlet end of the bad column and it may help.
How do I separate merged peaks in GC?
However,there are certain thumb rules for peak separation in GC which may be helpful: (i) Reduce the injection volume,(ii)dilute the sample in an inert solvent,(iii)Change the stationary phase or column as per your sample and impurities(iv)apropriate temp.
How do you troubleshoot gas chromatography?
Verify steady flow rates and temperatures, then adjust settings and/or replace parts if needed. Remove contamination and use properly deactivated liner, seal, and column. Check for leaks at all connections and repair connections as needed. Verify injection technique and change back to original technique.
How do you stop peak splitting?
The problem of the peak splitting can be solved by reverse flushing most of the times as it removes the contaminant from the column and may also dissolve the absorbed contaminants if the impurities in the column is soluble in the Mobile Phase. 2) Wash the column with 90% Organic phase such as Acetonitrile or Methanol.
How do you improve the separation of gas chromatography?
Changes in resolution are due to changes in peak separation and/or peak width. Decreasing column temperatures usually increase peak separation but often with a corre sponding increase in peak width. If the increase in peak separation is greater than the increase in peak width, improved peak resolution oc curs.
How long do GC columns last?
A related question that we hear quite often is “what is the shelf life of a capillary GC column.” Once again, there are no right or wrong answers and GC columns usually don’t ship with an expiration date on them – but in general, a pretty good guideline guide line is to use the column within about two years to ensure …
How can the separation of gas chromatography be improved?
Sometimes the GC separation already is very close to optimum and there is not much to be gained by adjusting either the carrier gas or the oven settings. If more resolution is needed, then doubling the column length or reducing the inner diameter to the next smallest available one may produce the desired improvements.
How can I improve my GC separation?
What is column bleeding?
Column bleed is the normal background signal generated by the column stationary phase. This is illustrated in Figure 1 and it is easy to see from this why low column bleed is a significant factor in making quantitation easier.
Why is XRD peak splitting?
Peak splitting is taking place due to the phase transformation. For example BaTiO3 ceramics has splitting peak at around 2theta angle of 45 which is specifying the tetragonal phase.
