What are the material used for sandwich construction?
Sarah Marsh What are the material used for sandwich construction?
The core can exist in a number of structures and materials: Expanded/extruded foam (polymer – polyurethane, epoxy; metal – aluminium) Honeycomb structure (metal – aluminium, steel; Nomex – aramid fibre dipped in resin (epoxy, phenolic or polyamide) to form a paper-like material) Solid (wood – balsa; polymer – epoxy)
What does a composite sandwich construction consist of?
Sandwich panels are composites which consist of two thin laminate outer skins and lightweight (e.g., honeycomb) thick core structure. Owing to the core structure, such composites are distinguished by stiffness.
What are composite sandwich panels used for?
CoreLite Sandwich Panels Composite panels are used in performance-driven structures to reduce weight and increase strength. Sandwich structures are greatly customizable because there are several core material and laminate options.
What is a sandwich panel construction?
Composite panels, also known as sandwich panels, are a popular construction material consisting of an insulation core sandwiched between two metal or plastic facings. Depending on the core, panels can actually create a substantial fire hazard.
Why is sandwich construction used?
Sandwich construction is used extensively in both the aerospace and commercial industries because it is an extremely lightweight structural approach that exhibits high stiffness and strength-to-weight ratios.
What are the three structures of a sandwich?
A sandwich structure consists of three elements as shown in Figure 1, face sheets, core and the adhesive interface layers. The faces carry in-plane and bending loads, while the core resist transverse shear forces and keeps the facings in place [5].
What are the advantages of sandwich composites?
The major advantages of sandwich composites over conventional materials are that sandwich composites (1) have a low overall density, a high strength-to-weight ratio, and a high stiffness-to-weight ratio; (2) are capable of providing good thermal and acoustical insulation; and (3) have uniform energy absorption capacity …
Where are sandwich panels used?

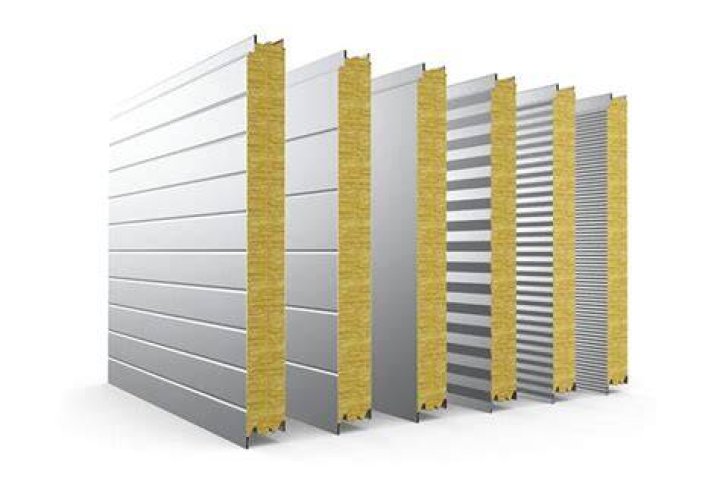

Uses. Sandwich panels are widely used as an external cladding for single and multi-storey buildings, where they are required to provide weather resistance, and resistance to wind-loading, access loads, self-weight and so on.
What is meant by sandwich panel?
A sandwich panel is any structure made of three layers: a low-density core (PIR, mineral wool, XPS), and a thin skin-layer bonded to each side. Sandwich panels are used in applications where a combination of high structural rigidity and low weight is required.
Are sandwich panels waterproof?
Description of the project: Waterproofing sandwich panels can be done in an easy, safe and durable application with Liquid Rubber. Liquid Rubber is always cold applied so there are no risks with any open fire.
What are the different failure modes of sandwich construction?
The failure modes investigated are face sheet compressive failure, core failure and facing wrinkling. The various modes have been studied separately and both initiation and ultimate failure have been determined.
