What are PCBs made of?
John Peck What are PCBs made of?

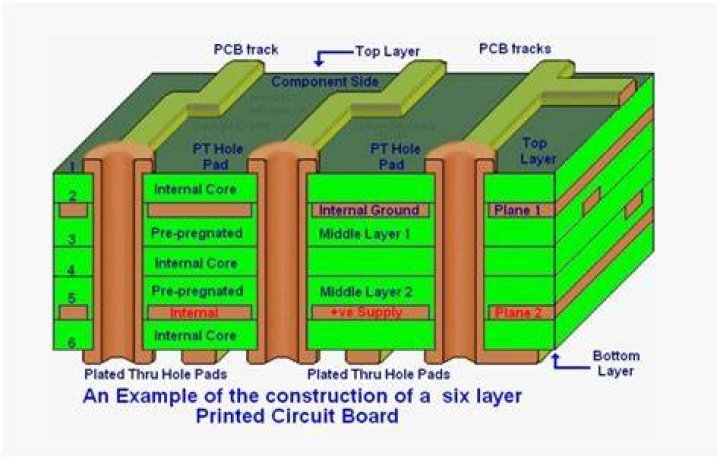

Printed circuit boards (PCBs) are usually a flat laminated composite made from non-conductive substrate materials with layers of copper circuitry buried internally or on the external surfaces. They can be as simple as one or two layers of copper, or in high density applications they can have fifty layers or more.
What are the different types of PCBs?
The different types of PCBs available are
- Single-Sided PCBs.
- Double-Sided PCBs.
- Multilayer PCBs.
- Rigid PCBs.
- Flex PCBs.
- Rigid-Flex PCBs.
What PCBs are used for?
Printed circuit boards (PCBs) are used to mechanically support and electrically connect electronic components using conductive pathways, tracks or signal traces etched from copper sheets laminated onto a non-conductive substrate, employed in the manufacturing of business machines and computers, as well as communication …
Can you touch PCBs?
A. If the bare-hands touch the printed circuit board directly, it will result in oxidization of copper. Touching the PCB after solder mask until package with bare hands will cause unclean surface of boards and poor soldering.
Why is PCB green?
But, why are printed circuit boards green? It is due to the solder mask, which protects the copper circuits printed on the fibre glass core to prevent short circuits, soldering errors, etc. The colour of the solder mask gives the board its appearance.
What is the price of PCB?
Questions & Answers on Circuit Board
| Board Type | Min Price | Max Price |
|---|---|---|
| Double Sided | Rs 100/Piece | Rs 950/Piece |
| Single Sided | Rs 10/Piece | Rs 3500/Piece |
What are two common types of PCB boards?
Common Types of Printed Circuit Boards
- Single Layer PCB. Single layer printed circuit boards are among some of the simplest to design and manufacture.
- Double Layer PCB.
- Multi-Layer PCB.
- High Density Interconnect (HDI) PCB.
- High Frequency PCB.
What pitch is Veroboard?
Two forms of Veroboard are produced with hole pitch of 2.54 mm (0.1 in) or 3.5 mm (0.15 in). The larger pitch is and was considered easier to assemble, especially at a time when many constructors were still more familiar with valves and tag strips.
Who uses PCB?
Some of the common applications of PCBs include: Scanning Equipment: X-Ray screens, CT scanners, and ultrasonic scans all use electronic components in order to function. Monitors: Medical monitoring devices such as blood glucose monitors, heart rate and blood pressure monitors all have electronic components inside.
Are printed circuit boards toxic?
Some of the materials in one component of e-waste, printed circuit boards (PCBs), are particularly toxic and difficult to recycle, and are often dumped into landfills, on open land or in water, where they pollute the soil and the water systems, damaging human health and the environment.
Can I cut circuit board?
If you don’t have a tabletop paper cutter, place a piece of paper next to the blade of a table saw (containing a diamond saw blade). Pull down the cutting blade forcefully to cut the printed circuit board. If using a table saw, turn on the saw and feed the printed circuit board through the saw.
Why do you need a solder mask?
Solder mask is a thin layer of polymer that is put on a circuit board to protect the copper from oxidation and shorts during operation. It also protects the PCB from environmental influences such as dust and several other contaminants that may lead to shorts in the long run.
