How do you draw a rectangle on a cv2?

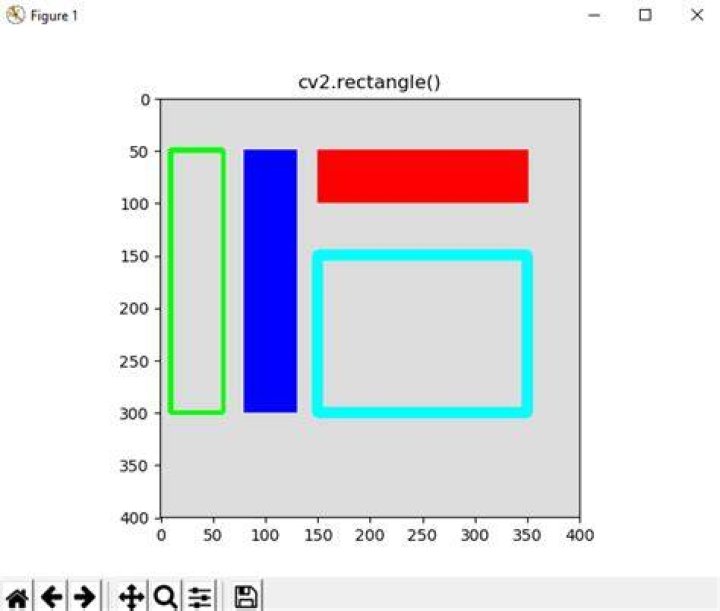

Python OpenCV | cv2. rectangle() method

1. Parameters:
2. image: It is the image on which rectangle is to be drawn.
3. start_point: It is the starting coordinates of rectangle.
4. end_point: It is the ending coordinates of rectangle.
5. color: It is the color of border line of rectangle to be drawn.

How do we draw a line with OpenCV?

Draw a line using OpenCV in C++

1. img: This is the image file.
2. start: Start point of the line segment.
3. end: Endpoint of the line segment.
4. color: Color of the line to be drawn.
5. thickness: Thickness of the line drawn.
6. lineType: Type of the line.
7. nshift: It is the Number of fractional bits in the point coordinates.

What is lineType in cv2?

OpenCV provides the line() function to draw the line on the image. It draws a line segment between ptr1 and ptr2 points in the image. The image boundary clips the line. cv2.line(img, pt1, pt2, color[, thickness[, lineType[, shift]]])

What is cv2 putText?

cv2. putText() method is used to draw a text string on any image. org: It is the coordinates of the bottom-left corner of the text string in the image. The coordinates are represented as tuples of two values i.e. (X coordinate value, Y coordinate value).

Which OpenCV function helps to draw rectangles around detected faces?

We will be using the detectMultiScale function to detect the faces seen in the canvas. And accordingly, when faces are detected, we will draw a colored rectangle around the face.

How do I make a picture into a rectangle?

Use matplotlib. patches. rectangle() to draw a rectangle over the plot of an image

1. img = matplotlib. image. imread(“./kite_logo.png”)
2. figure, ax = pyplot. subplots(1)
3. rect = patches. Rectangle((125,100),50,25, edgecolor=’r’, facecolor=”none”)
4. ax. imshow(img) Displays an image.
5. ax. add_patch(rect) Add rectangle to image.

How do you draw shapes in OpenCV?

Draw geometric shapes on images using OpenCV

1. line() : Used to draw line on an image.
2. rectangle() : Used to draw rectangle on an image.
3. circle() : Used to draw circle on an image.
4. putText() : Used to write text on image.

What format is the image read in using OpenCV?

OpenCV offers support for the image formats Windows bitmap (bmp), portable image formats (pbm, pgm, ppm) and Sun raster (sr, ras).

Which functions are used in OpenCV to draw?

Drawing functions in OpenCV cv2. line : Draws a line on image, starting at a specified (x, y)-coordinate and ending at another (x, y)-coordinate. cv2. circle : Draws a circle on an image specified by the center (x, y)-coordinate and a supplied radius.

How do I add text to OpenCV?

OpenCV putText() – Writing Text on Images

1. img: The Image on which you want to write the text.
2. text: The text you want to write on the image.
3. org: It is the coordinates of the Bottom-Left corner of your text.
4. fontFace: It denotes the type of font you want to use.

What is cv2 waitKey?

cv2. waitKey(1) returns the character code of the currently pressed key and -1 if no key is pressed. the & 0xFF is a binary AND operation to ensure only the single byte (ASCII) representation of the key remains as for some operating systems cv2. waitKey(1) will return a code that is not a single byte.

What is cv2 addWeighted?

Introduction to OpenCV addWeighted. OpenCV is a technique used in Python to process images and then use it further for analytical purposes. It can also be used to solve problems in Computer Vision. Of all the functions this library provides, addWeighted is a function that helps in alpha blending of the image.
